Machine Vision Lens
E3385
| Image Size(inch) | 1" |
| Focal Length(mm) | 75 |
| F NO. | 2.8 |
| Control Iris | 1 |
| ObjectDimension at M.O.D. | 77.1mm x 57.7mm 1" |
| Field of View (H) | 9.7° |
| Distortion 1/2" | <0.3% |
| Distortion 1/2.5" | <0.23% |
| Distortion 1/3" | <0.2% |
| Back Focal Length (mm) | 16.49(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ35*36.55 |
E3576A
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 50 |
| F NO. | 2.8 |
| Control Iris | Manual |
| 控制Focus | Manual |
| ObjectDimension at M.O.D. | 366.5mm x 274.3mm 2/3" |
| Field of View (H) | 9.2° |
| Distortion 1/2" | -0.04% |
| Distortion 1/2.5" | -0.04% |
| Distortion 1/3" | -0.02% |
| Back Focal Length (mm) | 20.63(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M27*0.5 |
| Dimensions(Φ*L)（mm） | Φ35*60.02 |
E3520A
| Image Size(inch) | 1" |
| Focal Length(mm) | 36.4 |
| F NO. | '5.3 |
| Control Iris | Fixed |
| 控制Focus | Manual |
| Field of View (H) | 17.8° |
| Distortion 1/2" | <0.019% |
| Distortion 1/2.5" | <0.016% |
| Distortion 1/3" | <0.01% |
| Back Focal Length (mm) | 15.64(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M37x0.75 |
| Dimensions(Φ*L)（mm） | Φ39*41.89 |
E3566A
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 50 |
| F NO. | 2.8 |
| Control Iris | Manual |
| 控制Focus | Manual |
| Field of View (H) | 9.2° |
| Distortion 1/2" | -0.04% |
| Distortion 1/2.5" | -0.04% |
| Distortion 1/3" | -0.02% |
| Back Focal Length (mm) | 20.63(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M27*0.5 |
| Dimensions(Φ*L)（mm） | Φ35*60.02 |

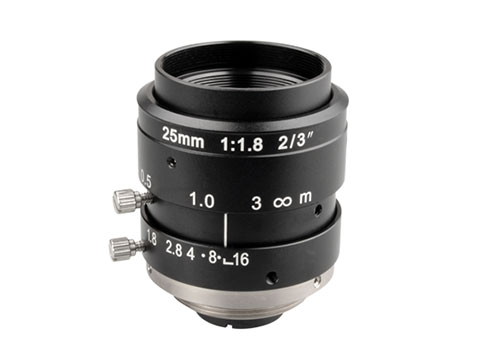

E3575A
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 25 |
| F NO. | 1.8 |
| Control Iris | Manual |
| Control Iris | Manual |
| Field of View (H) | 18.7° |
| Operating Temperature | -30~70℃ |
| Distortion 1/2" | -0.07% |
| Distortion 1/2.5" | -0.05% |
| Distortion 1/3" | -0.04% |
| Back Focal Length (mm) | 10.69(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M27*0.5 |
| Dimensions(Φ*L)（mm） | Φ35*42.26 |
E3564A
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 5 |
| F NO. | 2.8 |
| Control Iris | Manual |
| Control Focus | Manual |
| Field of View (H) | 115° |
| Distortion 1/2" | -6.20% |
| Distortion 1/2.5" | -5.40% |
| Distortion 1/3" | -4.20% |
| Back Focal Length (mm) | 9.12(1.1 filter &0.7 C.G) |
| Flange Back Length (mm) | 17.526(in air) |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ75*90.16 |
E3364A
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 16 |
| F NO. | 1.6 |
| Control Iris | Manual |
| Control Focus | Manual |
| ObjectDimension at M.O.D. | 110.0mm x 82.3mm 2/3" |
| Field of View (H) | 29.9° |
| 工作温度 | -30~70℃ |
| Distortion 1/2" | <-0.86% |
| Distortion 1/2.5" | <-0.86% |
| Distortion 1/3" | <-0.3% |
| Back Focal Length (mm) | 10.4(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ36*47.05 |
E3361A
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 12 |
| F NO. | 1.6 |
| Control Iris | Manual |
| Control Focus | Manual |
| ObjectDimension at M.O.D. | 366.5mm x 274.3mm 2/3" |
| Field of View (H) | 39.3° |
| Distortion 1/2" | <-0.76% |
| Distortion 1/2.5" | <-0.74% |
| Distortion 1/3" | <-0.5% |
| Back Focal Length (mm) | 9.51(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ35*44.59 |
E3121F
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 12.3 |
| F NO. | 1.6 |
| Control Iris | Fixed |
| Control Focus | Manual |
| Field of View (H) | 39° |
| Distortion 1/2" | -0.83% |
| Distortion 1/2.5" | -0.73% |
| Distortion 1/3" | -0.56% |
| Back Focal Length (mm) | 8.37(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ35*37.62 |
E3340A
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 8.6 |
| F NO. | 1.6 |
| Control Iris | Manual |
| Control Focus | Manual |
| ObjectDimension at M.O.D. | 549.2mm x 406.2mm 2/3" |
| Field of View (H) | 56° |
| 工作温度 | -30~70℃ |
| Distortion 1/2" | <-4.8% |
| Distortion 1/2.5" | <-3.7% |
| Distortion 1/3" | <-1.9% |
| Back Focal Length (mm) | 7.58(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ42*58.45 |

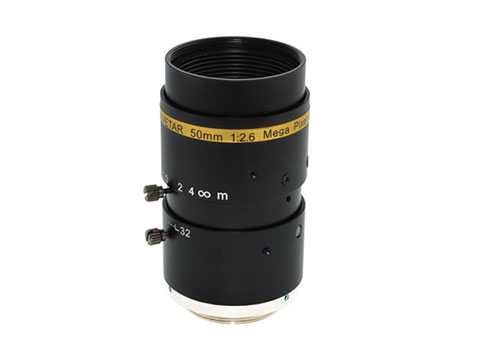

E3122F
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 50 |
| F NO. | 2.6 |
| Control Iris | Manual |
| Control Focus | Manual |
| ObjectDimension at M.O.D. | 82.6mm x 61.9mm 2/3" |
| Field of View (H) | 9.7° |
| 工作温度 | -30~70℃ |
| Distortion 1/2" | <-0.07% |
| Distortion 1/2.5" | <-0.05% |
| Distortion 1/3" | <-0.03% |
| Back Focal Length (mm) | 10.18(in air)18.25(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ35*57.55 |
E3120F
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 25 |
| F NO. | 1.8 |
| Control Iris | Fixed |
| Control Focus | Manual |
| ObjectDimension at M.O.D. | 305.2mm x 228.6mm 2/3" |
| Field of View (H) | 18.9° |
| 工作温度 | -30~70℃ |
| Distortion 1/2" | <-0.4% |
| Distortion 1/2.5" | <-0.25% |
| Distortion 1/3" | <-0.11% |
| Back Focal Length (mm) | 10.18(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ35*36.55 |
E3128F
| Image Size(inch) | 1" |
| Focal Length(mm) | 36.4 |
| F NO. | 5.3 |
| Control Iris | Fixed |
| Control Focus | Manual |
| Field of View (H) | 17.8° |
| Distortion 1/2" | <0.019% |
| Distortion 1/2.5" | <0.016% |
| Distortion 1/3" | <0.01% |
| Back Focal Length (mm) | 15.64(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M37x0.75 |
| Dimensions(Φ*L)（mm） | Φ39*41.89 |
E3112I
| Image Size(inch) | 2/3" |
| Focal Length(mm) | 12.3 |
| F NO. | 1.6 |
| Control Iris | Fixed |
| Control Focus | Manual |
| Field of View (H) | 39° |
| Distortion 1/2" | -0.83% |
| Distortion 1/2.5" | -0.73% |
| Distortion 1/3" | -0.56% |
| Back Focal Length (mm) | 8.37(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M27*0.5 |
| Dimensions(Φ*L)（mm） | Φ35*37.62 |

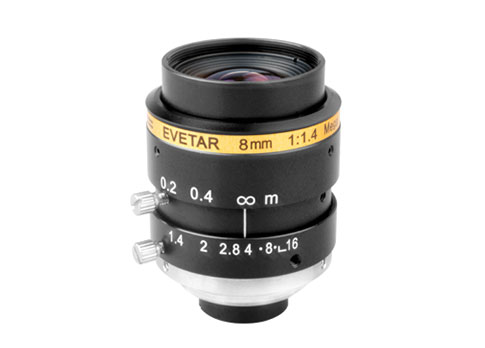

E3358
| Image Size(inch) | 1./1.8" |
| Focal Length(mm) | 8 |
| F NO. | 1.4 |
| Control Iris | Manual |
| Control Focus | Manual |
| ObjectDimension at M.O.D. | 96.0mm x 71.8mm 1/1.8" |
| Field of View (H) | 46.2° |
| 工作温度 | -30~70℃ |
| Distortion 1/2" | <-1% |
| Distortion 1/2.5" | <-2% |
| Distortion 1/3" | <-3% |
| Back Focal Length (mm) | 10.32(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ35*38.55 |

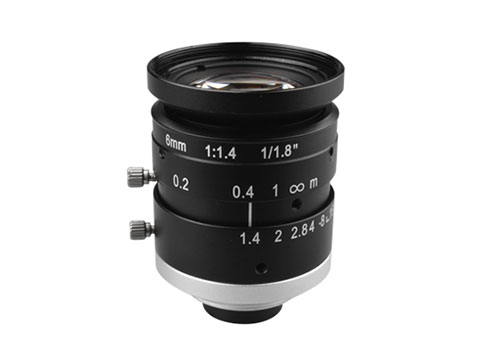

E3356
| Image Size(inch) | 1./1.8" |
| Focal Length(mm) | 6 |
| F NO. | 1.4 |
| Control Iris | Manual |
| Control Focus | Manual |
| ObjectDimension at M.O.D. | 245.2mm x 183.0mm 1/1.8" |
| Field of View (H) | 59.6° |
| 工作温度 | -30~70℃ |
| Distortion 1/2" | <-2% |
| Distortion 1/2.5" | <-1.9% |
| Distortion 1/3" | <-1.7% |
| Back Focal Length (mm) | 8.38(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Dimensions(Φ*L)（mm） | Φ36*39.98 |
E3129F
| Image Size(inch) | 1./1.8" |
| Focal Length(mm) | 6 |
| F NO. | 1.6 |
| Control Iris | Manual |
| Control Focus | Manual |
| Field of View (H) | 60.1° |
| Back Focal Length (mm) | 7.88(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M34*0.5 |
| Dimensions(Φ*L)（mm） | Φ36*44.7 |
E3109I
| Image Size(inch) | 1./1.8" |
| Focal Length(mm) | 8 |
| F NO. | 1.4 |
| Control Iris | Manual |
| Control Focus | Manual |
| Field of View (H) | 46° |
| Distortion 1/2" | -1.07% |
| Distortion 1/2.5" | -1.01% |
| Distortion 1/3" | -0.84% |
| Back Focal Length (mm) | 9.07(in air) |
| Flange Back Length (mm) | 17.526 |
| Mount | C |
| Filter Thread Size | M27*0.5 |
| Dimensions(Φ*L)（mm） | Φ35*38.12 |

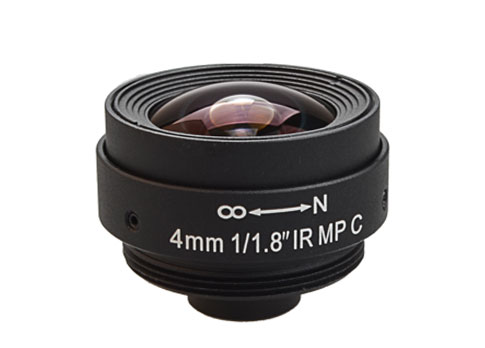

E3104A
| Image Size(inch) | |
| Focal Length(mm) | 4 |
| F NO. | 1.8 |
| Control Iris | Fixed |
| Control Focus | Manual |
| Field of View (H) | 109° |
| Distortion 1/2" | -34.20% |
| Distortion 1/2.5" | -27.50% |
| Distortion 1/3" | -18.90% |
| Back Focal Length (mm) | 7.98(in air) |
| Flange Back Length (mm) | 12.5 |
| Mount | CS |
| Dimensions(Φ*L)（mm） | Φ30*31.05 |
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Key Features
- The low distortion is less than -2%
- 3-5,12 megapixel high resolution
- Custom waterproof or reinforced versions
- Precise aperture and focal length adjustment
- A locking device for focus and aperture to prevent movement caused by shock or impact
- Phase plane sizes are 1/1.8 ", 2/3 "and 1"
Applications
Machine vision field
Customized service and technical support
As an innovative optical solution provider and focused megapixel camera manufacturer,
We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution.
